ALB225

Ball End Mill for Aluminium

●NS TOOL unique flute design reduces chattering at corner and side milling．

  • Material
    Regular Grain Carbide

  • Number of Flutes
    2 Flutes

  • Helix Angle
    25°

  • φd h5

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Line up

Unit [size: mm]

Code

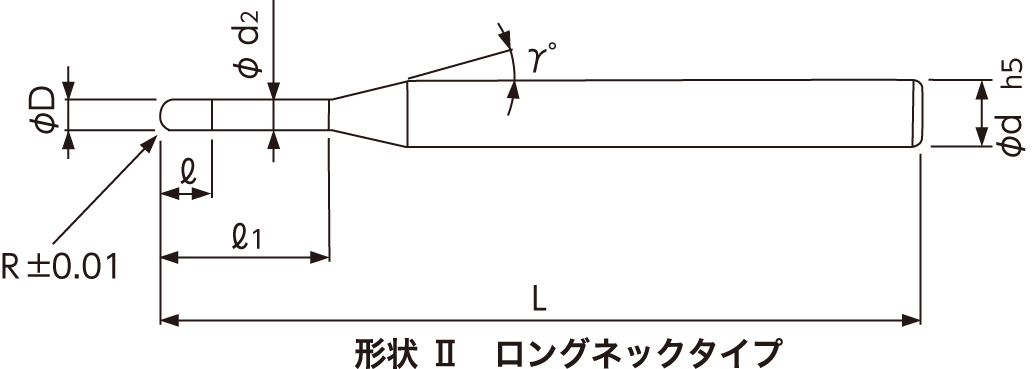

No.		 (R)Radius (l)Length of Cut (l1)Under neck Length Type (D)Dia. (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
01-00638-03001 R0.3 0.45 3 B 0.6 0.56 12° 4 60
01-00638-04001 R0.4 0.6 4 B 0.8 0.76 12° 4 60
01-00638-05001 R0.5 2 － A 1 － 12° 4 60
01-00638-05011 R0.5 0.75 5 B 1 0.95 12° 4 60
01-00638-05013 R0.5 0.75 10 B 1 0.95 12° 4 60
01-00638-07501 R0.75 3 － A 1.5 － 12° 4 60
01-00638-07511 R0.75 1.1 7.5 B 1.5 1.45 12° 4 60
01-00638-07513 R0.75 1.1 15 B 1.5 1.45 12° 4 60
01-00638-10001 R1 4 － A 2 － 12° 4 60
01-00638-10011 R1 1.5 10 B 2 1.94 12° 4 60
01-00638-10013 R1 1.5 20 B 2 1.94 12° 4 60
01-00638-15001 R1.5 6 － A 3 － 12° 6 60
01-00638-15011 R1.5 2.5 15 B 3 2.85 12° 6 60
01-00638-15013 R1.5 2.5 30 B 3 2.85 12° 6 70
01-00638-20001 R2 8 － A 4 － 12° 6 70
01-00638-20011 R2 3 20 B 4 3.8 12° 6 80
01-00638-20013 R2 3 40 B 4 3.8 12° 6 90
01-00638-25001 R2.5 10 － A 5 － 12° 6 80
01-00638-25011 R2.5 3.5 25 B 5 4.8 12° 6 80
01-00638-25013 R2.5 3.5 50 B 5 4.8 12° 6 100
01-00638-30001 R3 12 － A 6 － － 6 90
01-00638-30011 R3 6 30 B 6 5.8 － 6 90
01-00638-30013 R3 6 60 B 6 5.8 － 6 120
01-00638-40001 R4 16 － A 8 － － 8 90
01-00638-50001 R5 20 － A 10 － － 10 100
01-00638-60001 R6 24 － A 12 － － 12 110
