AL5D-2DLC

DLC COATING 2-Flute L/D=5 End Mill for Aluminium

●Adopted NS TOOL original DLC COATING that suitable for long time machining．

  • Coating
    DLC COATING

  • Material
    Regular Grain Carbide

  • Number of Flutes
    2 Flutes

  • Helix Angle
    45°

  • Corner Shape
    Sharp Edge

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Line up

Unit [size: mm]

Code

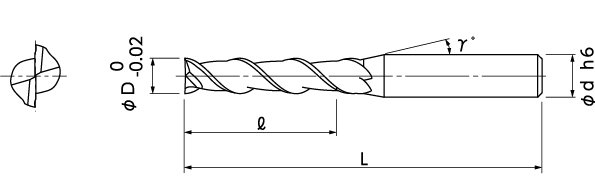

No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
01-00664-00100 1 5 9° 4 50
01-00664-00150 1.5 7.5 9° 4 50
01-00664-00200 2 10 9° 4 50
01-00664-00250 2.5 12.5 9° 4 50
01-00664-00300 3 15 9° 6 55
01-00664-00400 4 20 9° 6 60
01-00664-00500 5 25 9° 6 65
01-00664-00600 6 30 － 6 75
01-00664-00700 7 35 9° 8 90
01-00664-00800 8 40 － 8 90
01-00664-00900 9 45 9° 10 100
01-00664-01000 10 50 － 10 100
01-00664-01100 11 55 9° 12 110
01-00664-01200 12 60 － 12 110
