MX445

MUGEN-COATING 4-Flute LEAD45 End Mill

●L/D=5 and helix 45°to minimize the milling deflection even though the long cutting length design.

  • Material
    Micro Grain Carbide

  • Helix Angle
    45°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    4 Flutes

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

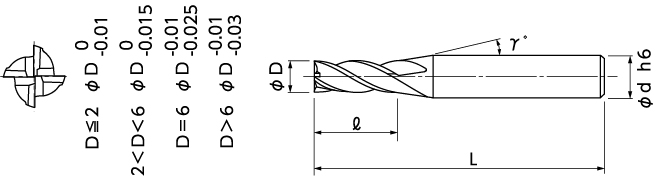

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00095-00100 1 5 12° 4 45 6,000
08-00095-00150 1.5 7.5 12° 4 45 6,000
08-00095-00200 2 10 12° 4 50 5,000
08-00095-00250 2.5 12.5 12° 4 50 5,000
08-00095-00300 3 15 12° 6 55 6,000
08-00095-00350 3.5 17.5 12° 6 60 8,000
08-00095-00400 4 20 12° 6 60 6,600
08-00095-00450 4.5 22.5 12° 6 65 9,000
08-00095-00500 5 25 12° 6 65 6,900
08-00095-00550 5.5 27.5 12° 6 75 9,800
08-00095-00600 6 30 6 75 7,500
08-00095-00800 8 40 8 90 16,500
08-00095-01000 10 50 10 100 18,700
08-00095-01200 12 60 12 105 26,400
