MX440

MUGEN-COATING 4-Flute LEAD40 End Mill

●L/D=4 and helix 40°is suitable for deep machining with minimum deflection of cutting up-right surface.

  • Material
    Micro Grain Carbide

  • Helix Angle
    40°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    4 Flutes

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

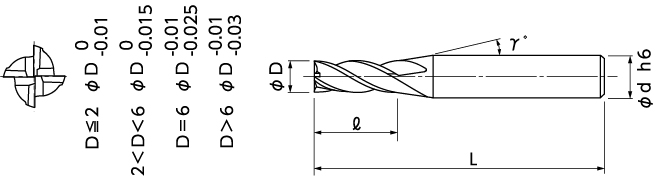

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00090-00100 1 4 12° 4 45 4,500
08-00090-00150 1.5 6 12° 4 45 4,500
08-00090-00200 2 8 12° 4 45 3,700
08-00090-00250 2.5 10 12° 4 45 3,700
08-00090-00300 3 12 12° 6 50 4,000
08-00090-00350 3.5 14 12° 6 50 6,500
08-00090-00400 4 16 12° 6 55 4,300
08-00090-00450 4.5 18 12° 6 55 7,600
08-00090-00500 5 20 12° 6 60 4,600
08-00090-00550 5.5 22 12° 6 65 8,000
08-00090-00600 6 24 6 65 5,000
08-00090-00800 8 32 8 90 13,800
08-00090-01000 10 40 10 100 15,200
08-00090-01200 12 48 12 105 23,100
