MX245

MUGEN COATING 2-Flute LEAD45 End Mill

●L/D=5 and helix 45°to minimize the milling deflection even though the long cutting length design．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    45°

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

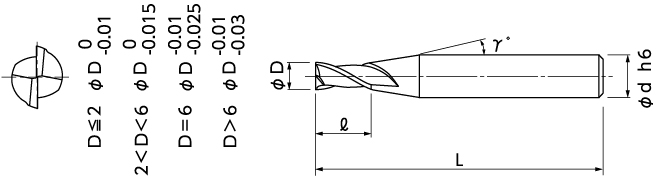

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00045-00030 0.3 1.5 12° 4 45
08-00045-00040 0.4 2 12° 4 45
08-00045-00050 0.5 2.5 12° 4 45
08-00045-00080 0.8 4 12° 4 45
08-00045-00100 1 5 12° 4 45
08-00045-00120 1.2 6 12° 4 45
08-00045-00150 1.5 7.5 12° 4 45
08-00045-00180 1.8 9 12° 4 50
08-00045-00200 2 10 12° 4 50
08-00045-00250 2.5 12.5 12° 4 50
08-00045-00300 3 15 12° 6 55
08-00045-00400 4 20 12° 6 60
08-00045-00500 5 25 12° 6 65
08-00045-00600 6 30 － 6 75
08-00045-00700 7 35 12° 8 90
08-00045-00800 8 40 － 8 90
08-00045-00900 9 45 12° 10 100
08-00045-01000 10 50 － 10 100
08-00045-01200 12 60 － 12 105
