MX240

MUGEN COATING 2-Flute LEAD40 End Mill

●L/D=4 and helix 40°is suitable for deep machining with minimum deflection of cutting up-right surface．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    40°

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

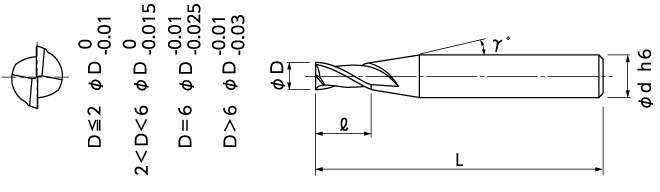

No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00040-00030 0.3 1.2 12° 4 45
08-00040-00040 0.4 1.6 12° 4 45
08-00040-00050 0.5 2 12° 4 45
08-00040-00060 0.6 2.4 12° 4 45
08-00040-00070 0.7 2.8 12° 4 45
08-00040-00080 0.8 3.2 12° 4 45
08-00040-00090 0.9 3.6 12° 4 45
08-00040-00100 1 4 12° 4 45
08-00040-00110 1.1 4.4 12° 4 45
08-00040-00120 1.2 4.8 12° 4 45
08-00040-00130 1.3 5.2 12° 4 45
08-00040-00140 1.4 5.6 12° 4 45
08-00040-00150 1.5 6 12° 4 45
08-00040-00160 1.6 6.4 12° 4 45
08-00040-00170 1.7 6.8 12° 4 45
08-00040-00180 1.8 7.2 12° 4 45
08-00040-00190 1.9 7.6 12° 4 45
08-00040-00200 2 8 12° 4 45
08-00040-00210 2.1 8.4 12° 4 45
08-00040-00220 2.2 8.8 12° 4 45
08-00040-00230 2.3 9.2 12° 4 45
08-00040-00240 2.4 9.6 12° 4 45
08-00040-00250 2.5 10 12° 4 45
08-00040-00260 2.6 10.4 12° 4 50
08-00040-00270 2.7 10.8 12° 4 50
08-00040-00280 2.8 11.2 12° 4 50
08-00040-00290 2.9 11.6 12° 4 50
08-00040-00300 3 12 12° 6 50
08-00040-00310 3.1 12.4 12° 6 50
08-00040-00320 3.2 12.8 12° 6 50
08-00040-00330 3.3 13.2 12° 6 50
08-00040-00340 3.4 13.6 12° 6 50
08-00040-00350 3.5 14 12° 6 50
08-00040-00360 3.6 14.4 12° 6 50
08-00040-00370 3.7 14.8 12° 6 50
08-00040-00380 3.8 15.2 12° 6 50
08-00040-00390 3.9 15.6 12° 6 50
08-00040-00400 4 16 12° 6 55
08-00040-00410 4.1 16.4 12° 6 55
08-00040-00420 4.2 16.8 12° 6 55
08-00040-00430 4.3 17.2 12° 6 55
08-00040-00440 4.4 17.6 12° 6 55
08-00040-00450 4.5 18 12° 6 55
08-00040-00460 4.6 18.4 12° 6 55
08-00040-00470 4.7 18.8 12° 6 55
08-00040-00480 4.8 19.2 12° 6 55
08-00040-00490 4.9 19.6 12° 6 55
08-00040-00500 5 20 12° 6 60
08-00040-00510 5.1 20.4 12° 6 60
08-00040-00520 5.2 20.8 12° 6 60
08-00040-00530 5.3 21.2 12° 6 60
08-00040-00540 5.4 21.6 12° 6 60
08-00040-00550 5.5 22 12° 6 65
08-00040-00560 5.6 22.4 12° 6 65
08-00040-00570 5.7 22.8 12° 6 65
08-00040-00580 5.8 23.2 12° 6 65
08-00040-00590 5.9 23.6 12° 6 65
08-00040-00600 6 24 － 6 65
08-00040-00700 7 28 12° 8 90
08-00040-00800 8 32 － 8 90
08-00040-00900 9 36 12° 10 100
08-00040-01000 10 40 － 10 100
08-00040-01200 12 48 － 12 105
