MSES230P

MUGEN-COATING 2-Flute Sharp Edge Short End Mill

●It is very suitable for high speed cutting due to the length of cut is short and rigid.
●Sharp edge profile guarantees high shearing ability.

  • Material
    Micro Grain Carbide

  • Helix Angle
    30°

  • Coating
    MUGEN-COATING

  • Number of Flutes
    2 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Sharp Edge

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

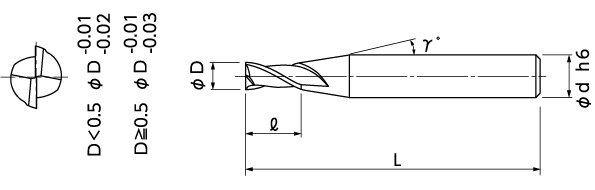

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00102-00010 0.1 0.15 4 45 7,600
08-00102-00015 0.15 0.2 4 45 7,900
08-00102-00020 0.2 0.3 4 45 4,800
08-00102-00025 0.25 0.3 4 45 7,900
08-00102-00030 0.3 0.4 4 45 4,200
08-00102-00035 0.35 0.4 4 45 7,900
08-00102-00040 0.4 0.6 4 45 4,600
08-00102-00045 0.45 0.6 4 45 7,900
08-00102-00050 0.5 0.7 4 45 2,400
08-00102-00060 0.6 1 4 45 3,600
08-00102-00070 0.7 1.2 4 45 3,900
08-00102-00080 0.8 1.5 4 45 2,400
08-00102-00100 1 2 4 45 2,000
08-00102-00120 1.2 2.5 4 45 2,400
08-00102-00150 1.5 3 4 45 2,000
08-00102-00160 1.6 3 4 45 2,700
08-00102-00180 1.8 3.5 4 45 2,400
08-00102-00200 2 4 4 45 2,000
08-00102-00250 2.5 5 4 45 2,000
08-00102-00300 3 6 4 50 2,700
08-00102-00400 4 8 4 50 3,000
08-00102-00500 5 10 6 55 3,200
08-00102-00600 6 12 6 55 3,500
08-00102-00800 8 16 8 65 7,500
08-00102-01000 10 20 10 75 8,500
08-00102-01200 12 24 12 80 14,000
