MSEM230Discontinued

MUGEN COATING 2-Flute Medium End Mill

●L/D=4 and helix 30°．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

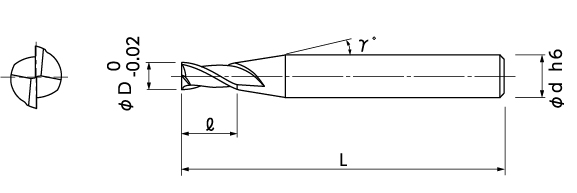

No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
▲ 08-00101-00050 0.5 2 9° 4 50
▲ 08-00101-00060 0.6 2.4 9° 4 50
▲ 08-00101-00080 0.8 3.2 9° 4 50
▲ 08-00101-00100 1 4 9° 4 50
▲ 08-00101-00150 1.5 6 9° 4 50
▲ 08-00101-00200 2 8 9° 4 50
▲ 08-00101-00250 2.5 10 9° 4 50
▲ 08-00101-00300 3 12 9° 6 55
▲ 08-00101-00400 4 16 9° 6 60
▲ 08-00101-00500 5 20 9° 6 65
▲ 08-00101-00600 6 24 － 6 75
▲ 08-00101-00800 8 32 － 8 90
▲ 08-00101-01000 10 40 － 10 100
▲ 08-00101-01200 12 48 － 12 110

▲ means the sizes will no longer be on sale after the stock runs out.
