MSE430P

MUGEN COATING 4-Flute Sharp Edge End Mill

●It can be cut from nonferrous to steels due to the sharp edges．
●Minimize tool deflection for accurate finishing．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Number of Flutes
    4 Flutes

  • Helix Angle
    30°

  • Corner Shape
    Sharp Edge

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

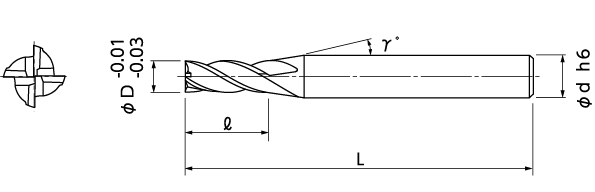

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00112-00100 1 2.5 9° 4 45
08-00112-00150 1.5 4 9° 4 45
08-00112-00200 2 5 9° 4 45
08-00112-00250 2.5 7 9° 4 45
08-00112-00300 3 8 9° 4 50
08-00112-00400 4 10 － 4 50
08-00112-00500 5 13 9° 6 55
08-00112-00600 6 15 － 6 55
08-00112-00800 8 20 － 8 65
08-00112-01000 10 25 － 10 75
08-00112-01200 12 30 － 12 80
