MSE430

MUGEN-COATING 4-Flute End Mill

●Our original MUGEN-COATING has been put on 4-flute end mill.
●It can be cut from non-hardened materials to hardened materials.

  • Material
    Micro Grain Carbide

  • Helix Angle
    30°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    4 Flutes

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

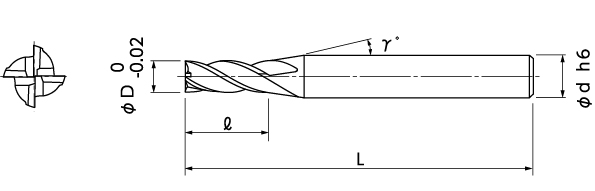

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00110-00100 1 2.5 4 45 4,900
08-00110-00150 1.5 4 4 45 4,900
08-00110-00200 2 5 4 45 3,000
08-00110-00250 2.5 7 4 45 3,000
08-00110-00300 3 8 6 50 3,100
08-00110-00350 3.5 9 6 50 6,500
08-00110-00400 4 10 6 50 3,500
08-00110-00450 4.5 12 6 55 7,000
08-00110-00500 5 13 6 55 3,600
08-00110-00550 5.5 14 6 55 7,500
08-00110-00600 6 15 6 55 3,800
08-00110-00650 6.5 17 8 60 12,800
08-00110-00700 7 18 8 65 10,700
08-00110-00750 7.5 19 8 65 13,500
08-00110-00800 8 20 8 65 7,700
08-00110-00850 8.5 22 10 70 16,800
08-00110-00900 9 23 10 70 16,800
08-00110-00950 9.5 24 10 75 19,400
08-00110-01000 10 25 10 75 10,300
08-00110-01200 12 30 12 80 14,100
08-00110-01400 14 35 12 100 38,400
08-00110-01500 15 40 16 110 46,000
08-00110-01600 16 40 16 110 46,000
08-00110-01800 18 45 16 120 63,900
08-00110-02000 20 50 20 135 71,600

means the sizes will no longer be on sale after the stock runs out.
