AL4D-2

2-Flute Medium End Mill for Aluminum

●It exhibits stable excellent surface on a wide area and no chattering occurs even during high speed cutting.

  • Material
    Regular Grain Carbide

  • Helix Angle
    45°

  • Number of Flutes
    2 Flutes

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Sharp Edge

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

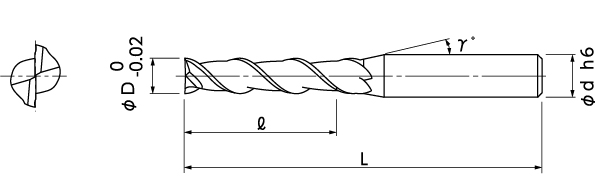

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
01-00633-00100 1 4 4 50 6,000
01-00633-00150 1.5 6 4 50 6,000
01-00633-00200 2 8 4 50 6,000
01-00633-00250 2.5 10 4 50 6,000
01-00633-00300 3 12 6 55 7,000
01-00633-00400 4 16 6 60 7,300
01-00633-00500 5 20 6 65 7,800
01-00633-00600 6 24 6 75 8,700
01-00633-00700 7 28 8 90 13,200
01-00633-00800 8 32 8 90 13,200
01-00633-00900 9 36 10 100 18,000
01-00633-01000 10 40 10 100 18,000
01-00633-01100 11 44 12 110 22,800
01-00633-01200 12 48 12 110 22,800
